Turn dji Pocket 3 into HDMI & connect to TV and atem mini pro

Turn dji Pocket 3 into HDMI

There are two ideas that turn dji pocket 3 into hdmi output.

one is that convert a USB UVC webcam output, like what the DJI Osmo Pocket 3 and DJI Osmo Action 4 are using to HDMI.

the second is that convert wireless local rtmp into hdmi output!


<20/08/2024 : UVC-HDMI dual mode adapter new firmware>

Our new firmware support vertical portrait mode DJI Pocket 3 into full screen hdmi output

If you bought it before, you can also change the firmware yourself.
link:











How to turn dji pocket 3 into HDMI ?

There are two idea !!


For live streaming application of dji pocket 3, it have two interface

1. usb-c UVC output. -> wire uvc to hdmi

2.  rtmp streaming.   -> wireless rtmp to hdmi


 Wireless hdmi  Solution:

1. Turn wireless rtmp of dji pocket 3 into HDMI
  The stability of the video is highly dependent on the quality of the Wi-Fi connection.
  so, its use is not recommended.

  its video output is just horizontal mode only!





dji pocket 3 can do the live streaming .
for example:  Youtube live  facebook live. or rtmp live.



   I just let DJI Pocket 3 do local rtmp streaming to "rtmp to hdmi adapter"
rtmp to hdmi adapter will turn rtmp into hdmi.


  dji pocket 3. streaming to adapter. ->  rtmp to hdmi adapter -> hdmi -> tv / atem mini

How to connect rtmp to hdmi adapter?
you need prepare a professional wifi router. and router ip address is 192.168.1.1

Router default ip is 192.168.1.1. it is very very important!!!

rtmp to hdmi adapter ip is 192.168.1.217 (it is fixed)

dji pocket 3 , RTMP to hdmi adpater and router are in the same intranet.


 go to app "dji" and do local rtmp streaming

 wifi : your home professional router
rtmp streaming:  rtmp://192.168.1.217/live/test1






and then, the local rtmp streaming will become hdmi output.

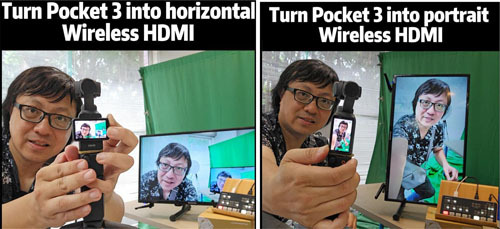

2. UVC to HDMI + wireless HDMI TX /RX   (BEST choice)

its video output can be horizontal mode or vertical mode
The wireless transmission distance in an open area is 20 meters in a straight line.

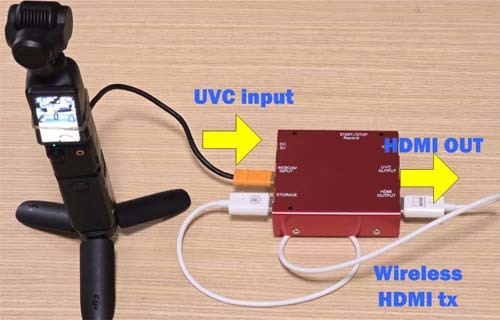

  STEP1:  turn UVC of pocket Into HDMI

     USB webcam streaming adapter will turn uvc into hdmi






  STEP2:  add  wireless HDMI tx  rx







 Wire hdmi  Solution:

Turn USB-C uvc of dji pocekt 3 into HDMI

1   HDMI & UVC dual mode adapter
  its video output can be horizontal mode or vertical mode




DJI Pocket 3 be HDMI output!!





Step1: USB out connect DC 5V power adapter
Step2 USB webcam connect INPUT B (USB in)
Step3: press icon B
Step4: HDMI output connect video switcher
     Example: atem mini pro hdmi 2, 3, 4


2.  FEBON Logitech webcam to hdmi adapter  (not recommand)

  its video output can be horizontal mode only


      dji pocket 3 connect to this adapter








3. USB webcam streaming adapter  (recommend)

  its video output can be horizontal mode or vertical mode

   DJI pocket 3 uvc output connect to this adapter

  https://www.febon.net/products/usb-webcam-streaming-mulitimedia-adapter








  this adapter have many output.  one of it is HDMI output

  it also can let DJI pocket 3 connect to iOS and pc at the same time.





By the way,
in amazon , you can see some China UVC to hdmi adapter
eg: O brand , R brand ..

Lead user share the information that Dji pocket 3 CAN NOT work on O brand , R brand.
the adapter firmware do not match
