About recording function for Atem mini pro series
1. it just can record only one PGM VIDEO
2. when it connect to atem mini ISO, It just record only one PGM video
(it can not record 4 channel)
3. video latency:
HDMI output/ usb UVC bypass : usb device latency + 80~130ms = 180~220ms
4. record file: up to 1080p 30fps 40,000kbps
Shipping package:
1. USB webcam streaming multimedia adapter x 1. ( metal case support now. )
2. DC 5V adapter. x 1
3. USB-C cable x 1
4. USB-A. cable x 2

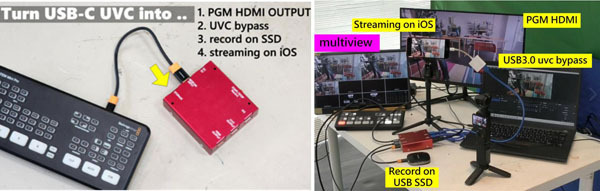

application 1. Turn atem mini pro be power ful
PGM / Mulitiview / record on SSD card / UVC bypass / iOS stremaing at the same time
atem mini pro streaming on iPhone / iPad
UVC Stand-Alone recording ! UVC webcam DVR!

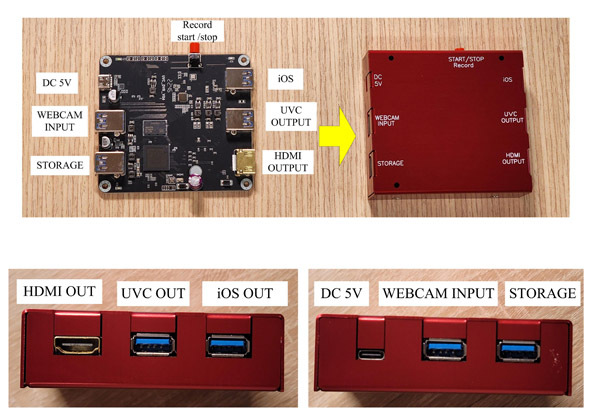

USB webcam streaming adapter is a USB webcam dock.
it can connect uvc device and turn uvc into 1. hdmi output 2. uvc bypass 3. record 4. live streaming on iOS
Turn USB WEBCAM into ...
1. HDMI output
2. USB3.0 UVC WEBCAM bypass
3. record on SSD card
4. display or live stream on iOS
application 2. Turn dji pocket 3 into HDMI
(for usb joysticks control with pocket 3, please contact me: andyzhengster@gmail.com)
(for usb joysticks control with pocket 3, please contact me: andyzhengster@gmail.com)
application 3. Turn usb webcam into HDMI

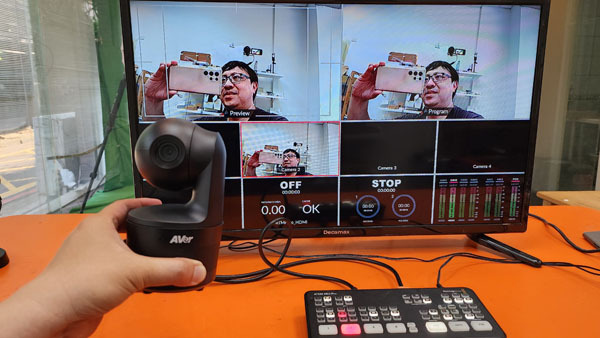

Turn USB PTZ conference camera into HDMI & Connect to ATEM MINI PRO
-
Turn USB PTZ conference camera into HDMI & connect to atem mini pro
AVER DL10 camera!!
application 4. Turn yolobox be powerful
-
-
HDMI output / record / uvc out / live streaming on iOS at the same time !!
Product spec:
1. USB WEBCAM INPUT:
Ⅰ .support UVC1.1 ~UVC1.5 version .
Ⅱ. uvc resolution is up to 1080p 30 30fps mjpg or 5fps YUV .
Ⅲ. USB2.0 UVC. (your uvc device must be comaptible for USB2.0 mode)
Ⅳ. support UAC adio sampling : 16 , 32, 44.1, 48, 96 KHZ
2. Power : DC 5V @ 600mA ~ 1000mA ( depend on usb webcam or working status)
3. USB storage: fat32 or exfat 1920x1080p 30fps , up to 40000kpbs
4. UVC output: USB3.0 UVC /UAC output . up to 1920x1080p 60fps mjpeg / yuv
uvc video latency: UVC device latency + 130 ms
5. HDMI output: 1920x1080p 30/24/25 fps
HDMI video laency : UVC device latency + 100ms
6. live streaming on iOS : app " medialink switcher " or " uvcplayer "
iOS local streaming video latency: UVC device latency about + 100ms
7. video bit rate : 3000~ 40000 kbps @ h.264 encoding engine.
audio AAC encoding bit rate:128 kbps
8. RTC: when power off, it still understand time clock
9. web URL control interface.
use browser to setting parameter by iOS connector
10 .Support VLC or iOS safari
you can develop your own app that is like iOS VLC player

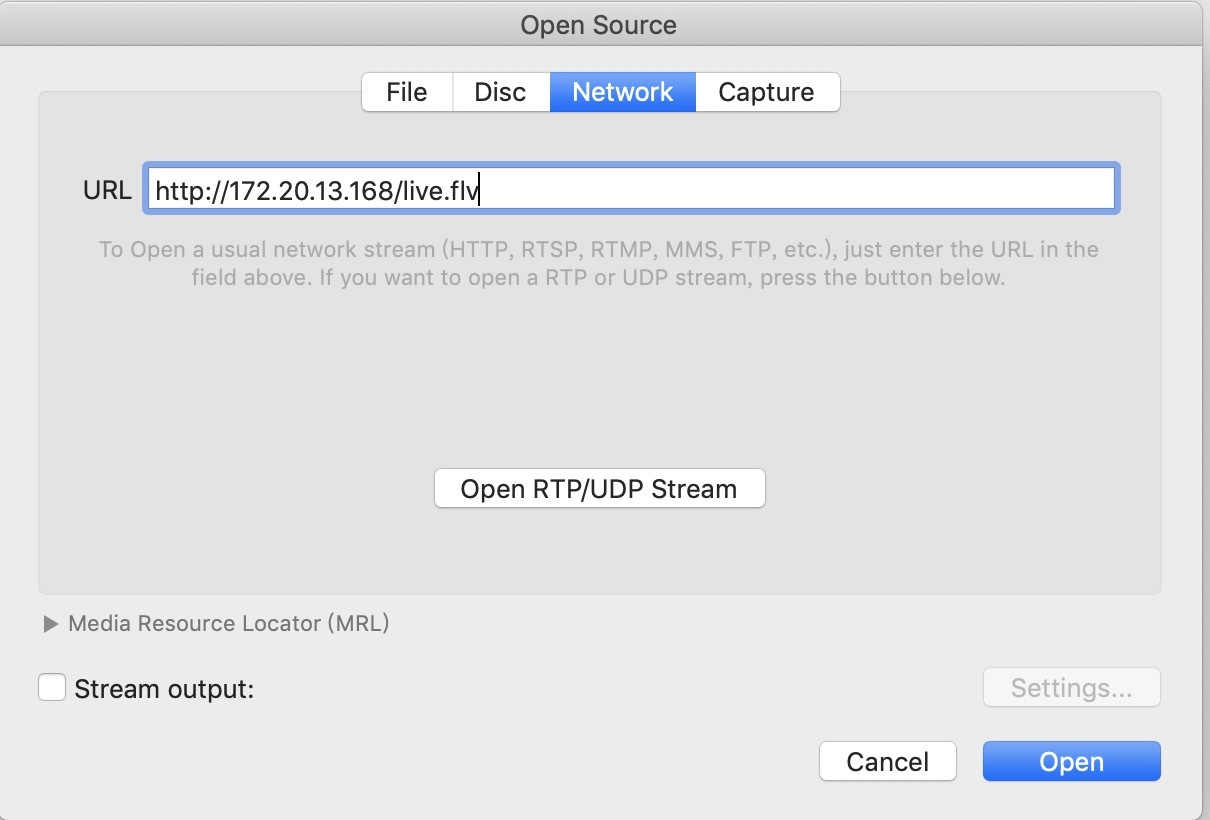

http://172.20.13.168/live.flv
VLC player :
─
─11 .iOS app : medialink switcher or uvcplayer
iOS app: medialink switcher
iOS11~iOS17 above / iPadOS 11 ~iPadOS 17
1. all function turn on & remove watermark (free use)
2.auto login facebook live (personal / page)
auto login youtube live
3 PIP /video switch / overlay
overlay: time, picture, score board and etc
4. 1920x1080 /1280x720/640x360
5. see message for facebook live (profile, page, group) and youtube
6. write message for facebook live ( page only) and youtube
WEBCAM input compatible test:
adapter just compatible for USB2.0 UVC device input.
If your USB3.0 device can be compatible USB2.0 uvc, this adapter also can work
WORK
|
USB-C output of atem mini / atem mini pro / atem mini iso
Logitech c92x ( atem mini pro will get error audio)
Logitech c270, c310,c525, c93x, BCC950 , Brio 4k, c615 C525
Logitech 4k pro magnetic webcam
logitech streamcam
IPEVO V4K
OBS BOT TINY
insta360 ONE R 4k camera
Microsoft webcam
MEVO START
MEVO PLUS
LUMINA WEBCAM
Avermeida BU110. Avermedia PW315 Avermedia PW515 , PW315
USB-C output of ATEM MINI / ATEM MINI PRO / ATEM MINI ISO
FEBON179 PLUS UVC hdmi CAPTURE CARD
J5create JVCU100
Aver DL10
DJI Pocket 3
|
No WORK
|
Avermedia BU113,
Avermedia PW513
EZCAP cam link , cam link
Elgato FACECAM
|
Performance test:
1. record function: video and audio is always sync for 6 hours above.
the below video is record file
https://mega.nz/file/fEwyRKaR#eQoeSvcYkRsQ_xaBy9XrHz7s10xaxOSG-TlpWeDXn6I
2. video latency test.
Total video latency = UVC device video latency + adapter latency
eg: atem mini pro
Total latency (240ms) = atem mini usb-c latency (140ms) + adapter latency (100ms ~120ms)
https://youtu.be/RRs00rtlhiI?t=96
_
_
application 1: connect to USB-C output of atem mini pro
it record usb-c webcam PGM video output of atem mini (pro)
CAN NOT record 4 Channel
1. it just can record the UVC output PGM video,
it can not record all of channel hdmi video
2. when you connect my adapter, atem will be UVC output.
For internal atem mini (pro) record function, it will disappear
atem mini (pro) will be UVC webcam output mode.
3. video latency = atem mini uvc latency + 100~130ms = 200~ 230ms

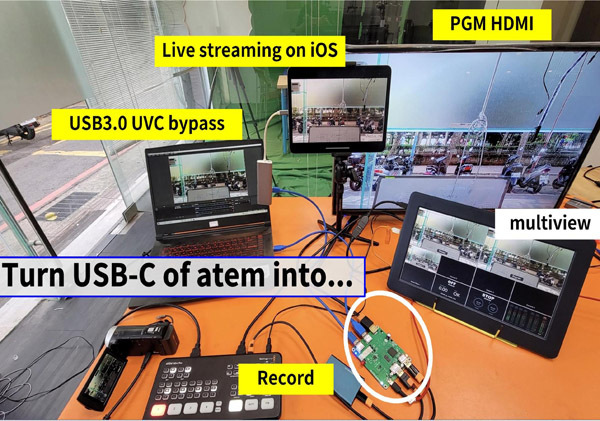

atem mini usb-c be PGM HDMI mutliview HDMI / record / uvc out at the same time
this usb-c adapter is designed for atem mini series.
it can turn usb-c of atem mini (pro) into
1. PGM hdmi
2. it can connect USB flash card and record
3. connect to iOS and streaming
4. USB3.0 UVC bypass mode

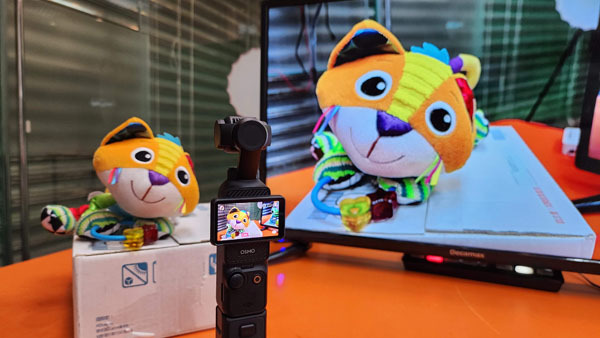

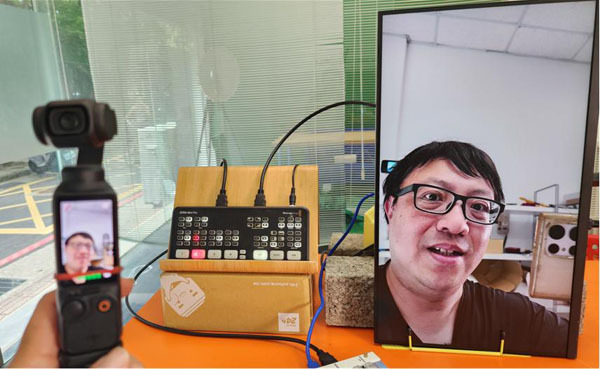

application 2: Turn DJI Pocket 3 into HDMI !
Dji pocket 3 will have hdmi output , uvc bypass, record on SSD CARD , streaming on iOS

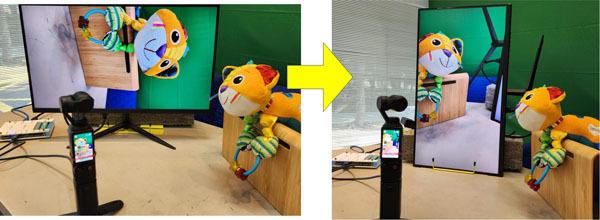

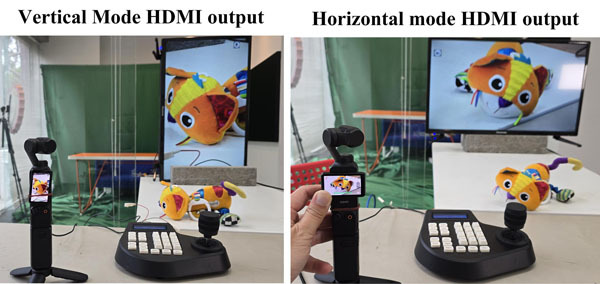

<01/02/25> add vertical mode hdmi output function
<01/02/2025>

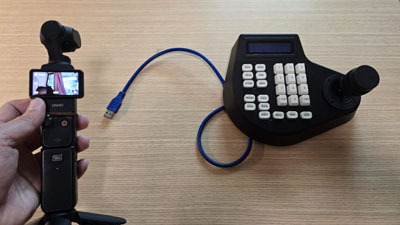

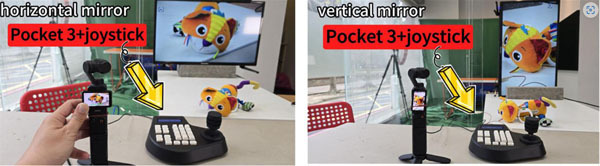

you can add USB joystick to controcl
How to control? contact me andyzhengster@gmail.com
application 3: let any USB webcam be powerful
your usb webcam DO NOT connect a PC!!
your webcam will be hdmi output / record / live streaming on iOS and USB webcam bypass output .

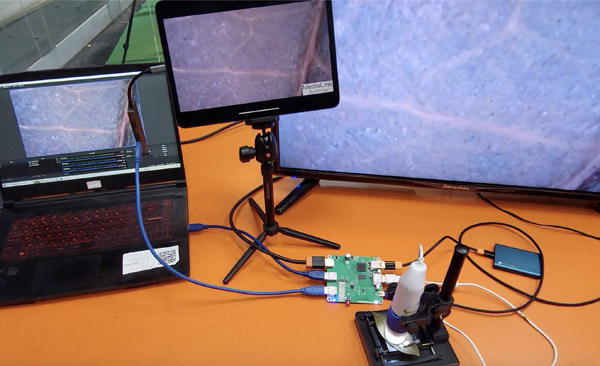

USB document camera for education use
when USB document camera connect to this adapter, it will be powerful
1. HDMI output: connect to classroom tv monitor
2. livestreaming on iOS: facebook live or youtube live on iPad
3. record on usb flash card.
4. USB webcam bypass output: it can do zoom / google meet video conference.
