USB2.0 FEBON168

1. How to Use in windows / mac OBS?

OBS can broadcast the live streaming into facebook live / youtube live /ustream….
It can let your video and audio always be sync .
Please DO NOT let your PC CPU using rate > 40%

  Parameter setting:
  a. audio shift : +300ms
  b. Video input /output: 1280x720
  c. Output encoder :   x264  or h.264 h/W encoder (good)
  d. Bit rate :  2000- 5000

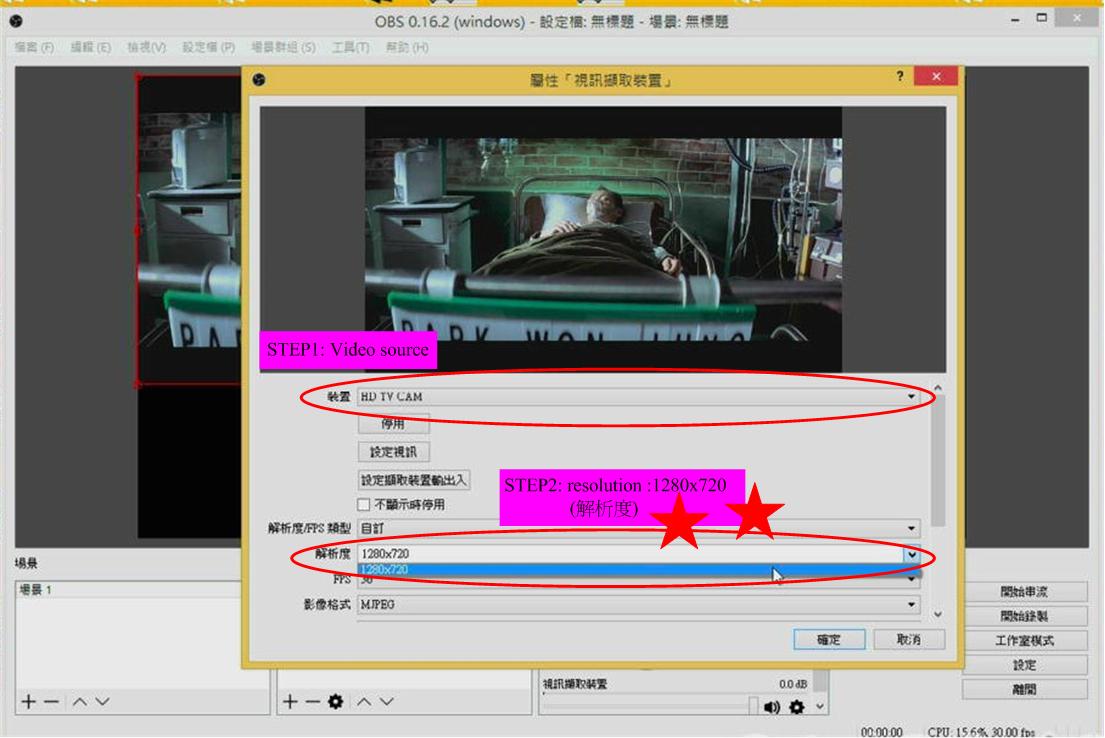

    Please make sure the video source   select in windows:



Windows demo:
Youtube live
facebook live
Livehouse.in

MAC demo:
Youtube Live  facebook LiVE Taiwan Livehouse.in


2. Why audio has "bi bi bi " small noise?

Due to the hdmi sampling rate is not equal the pc audio sampling rate.
How to solve?
http://febon.blogspot.com/2016/05/how-to-solve-noise-bi-bi-bi-of-grabber.html


3.    Why the video have flicker?
Your hdmi source is 1920X1080i 60field /50 field (interlacer)
Please try to let your hdmi source be progressive 1920x1080p, 1280x720p


4.    Why it does not have the video when I plug the camera?

Some consumer camera do not have hdmi lives output.
Its hdmi output is just for preview the record file
For example: Panasonic GF series (GF3…GF6..)

5.    Why it does not have the video on pc when I plug the SONY PS3?

Some hdmi output has HDCP protection.
For example: SONY PS3, blueray,  chromecast, hdmi of android phone output.
You need add the HDCP disable box as below idea.
