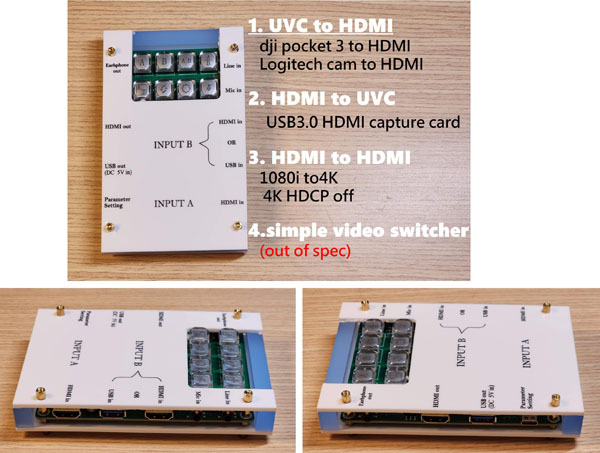

There are 4 main functions!!
1. UVC to HDMI : usb webcam connect to video switcher (atem mini pro)
uvc in , HDMI out & uvc bypass out at the same time
eg: dji pocket 3 is hdmi out.
eg: atem mini pro usb-c is PGM hdmi out & uvc out bypass together
2. HDMI to UVC : HDMI capture card
3. HDMI to HDMI: 1080i to 1080P, 1080p to 4K , 4K HDCP off
4. simple video switcher (beta function. out of sepc)
UVC and HDMI bidirectional reversible mutual conversion
Product Brief
1.At the same time, INPUT A & INPUT B together
Press icon A or icon B
2.At the same time, INPUT B is just only one
USB webcam input or hdmi input
3.At the same time, HDMI output and USB output together
4.USB out connect PC or DC 5V power adapter
Connect PC: UVC output, pc provide power for adapter
Standalone: USB out port connect DC 5V adapter
(UVC to hdmi , hdmi to hdmi as standalone)
5.connect upgrade with PC
you can setup audio on/off pip /side by side and icon definition
turn on browser
http://172.20.13.168

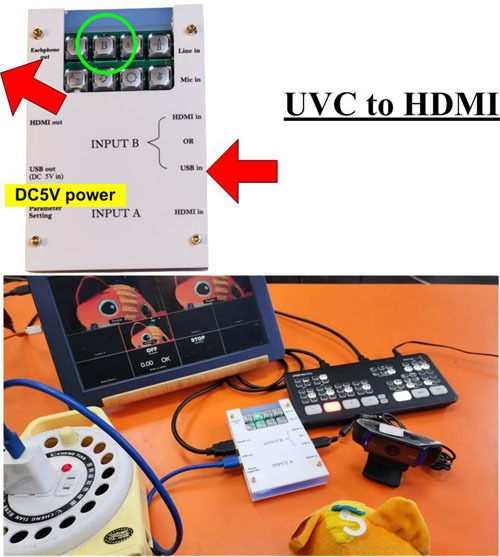

UVC to HDMI :
USB webcam connect to video switcher (atem mini pro)
DJI Pocket 3 be HDMI output!!

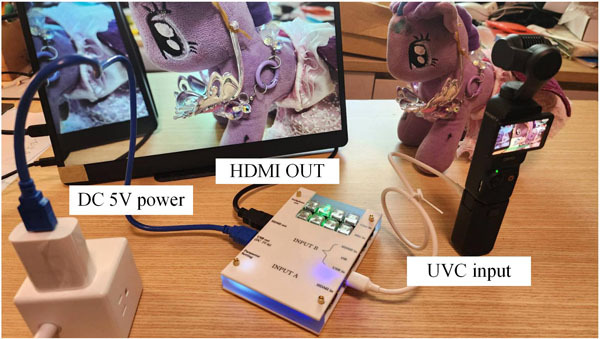

Step1: USB out connect DC 5V power adapter
Step2 USB webcam connect INPUT B (USB in)
Step3: press icon B
Step4: HDMI output connect video switcher
Example: atem mini pro hdmi 2, 3, 4

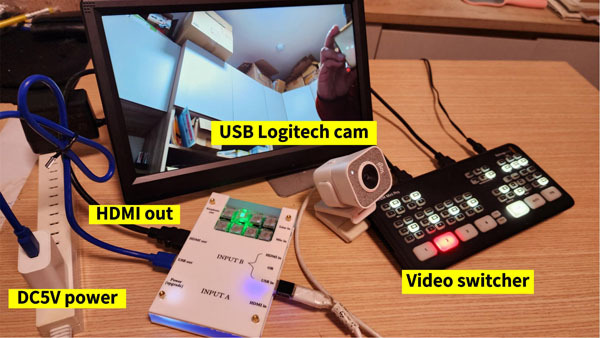

Logitech webcam be HDMI output!!

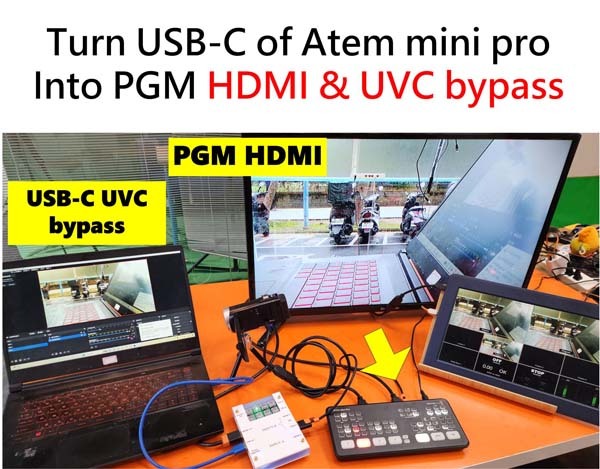

Turn USB-C of atem mini pro into PGM HDMI & UVC bypass

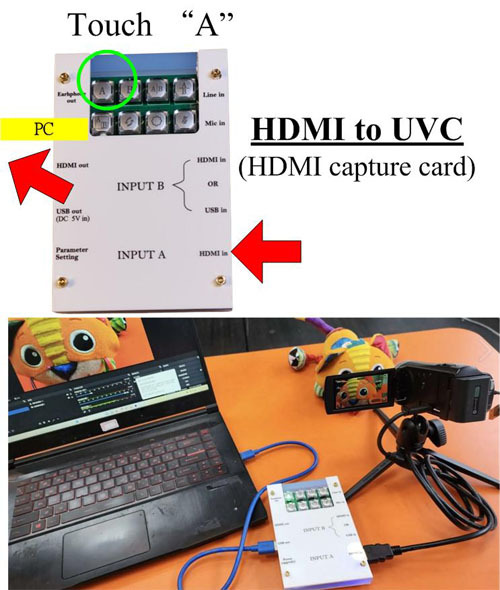

HDMI to UVC :
(HDMI capture card)
For OBS application

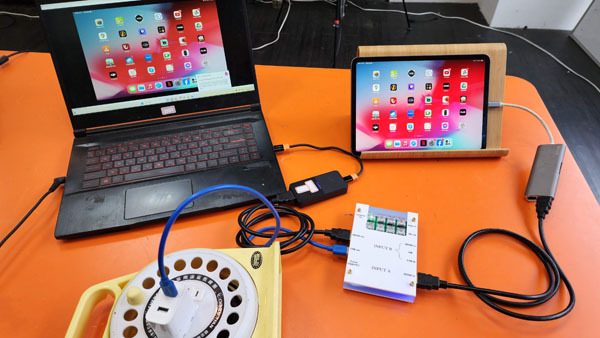

Step1: USB out connect PC
Step2 HDMI source connect INPUT A or INPUT B hdmi port
Step3: press icon A or B
Step4: turn on PC software. Example : OBS , SKYPE, GOOGLE MEET…

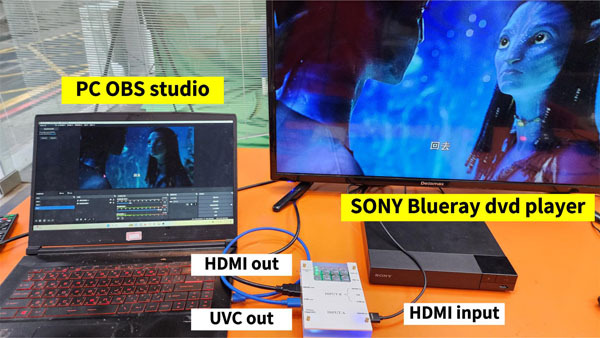

HDMI to HDMI :

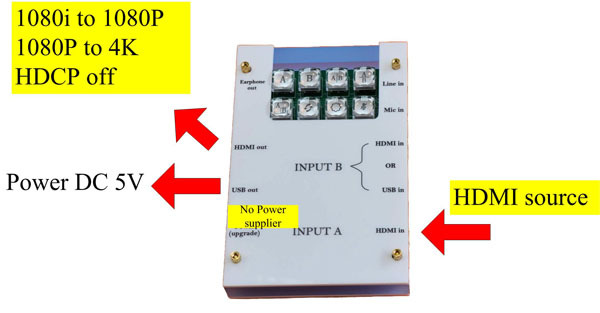

1. 1080i to 1080P
2. 1080p to 4K
3. HDMI protection off
for example:
HDMI source is iPad / SONY blueray dvd....
after process, camlink or Avermedia 4k capture card can connect this hdmi video.
Simple video switcher :
(beta test function. out of sepc)
For audio setting / pip /side by side setting,
connect USB cable with “upgrade” to PC and use browser to setting
http://172.20.13.168

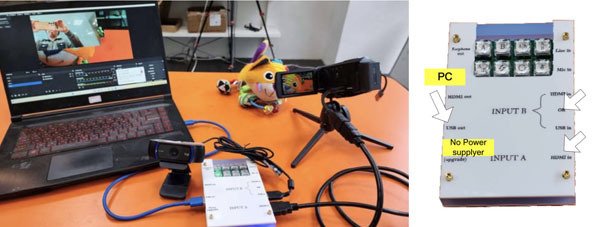

1. HDMI camera & USB webcam connect together
INPUT A connect HDMI source (hdmi in port). INPUT B connects USB WEBCAM (USB in port)
2. Two HDMI source input
input A connect HDMI 1 INPUT , INPUT B connect HDMI 2 INPUT
Product spec
1. INPUT A HDMI inputt : up to 4k 60fps hdmi
2. INPUT B HDMI input : up to 4k 60fps hdmi
USB webcam input: see the below table list
3.USB UVC out: up to 1080p 60fps YUV/ MJPG
4. HDMI out: up to 4k 30fps. Default shipping is 1920X1080P 60FPS or 50FPS
5. At the same time, HDMI OUT & UVC out can output together.
6. use upgrade port connect to PC and setup parameter
http://172.20.13.168
HDMI INPUT &USB WEBCAM INPUT compatible
HDMI input (INPUT A , INPUT B hdmi port)

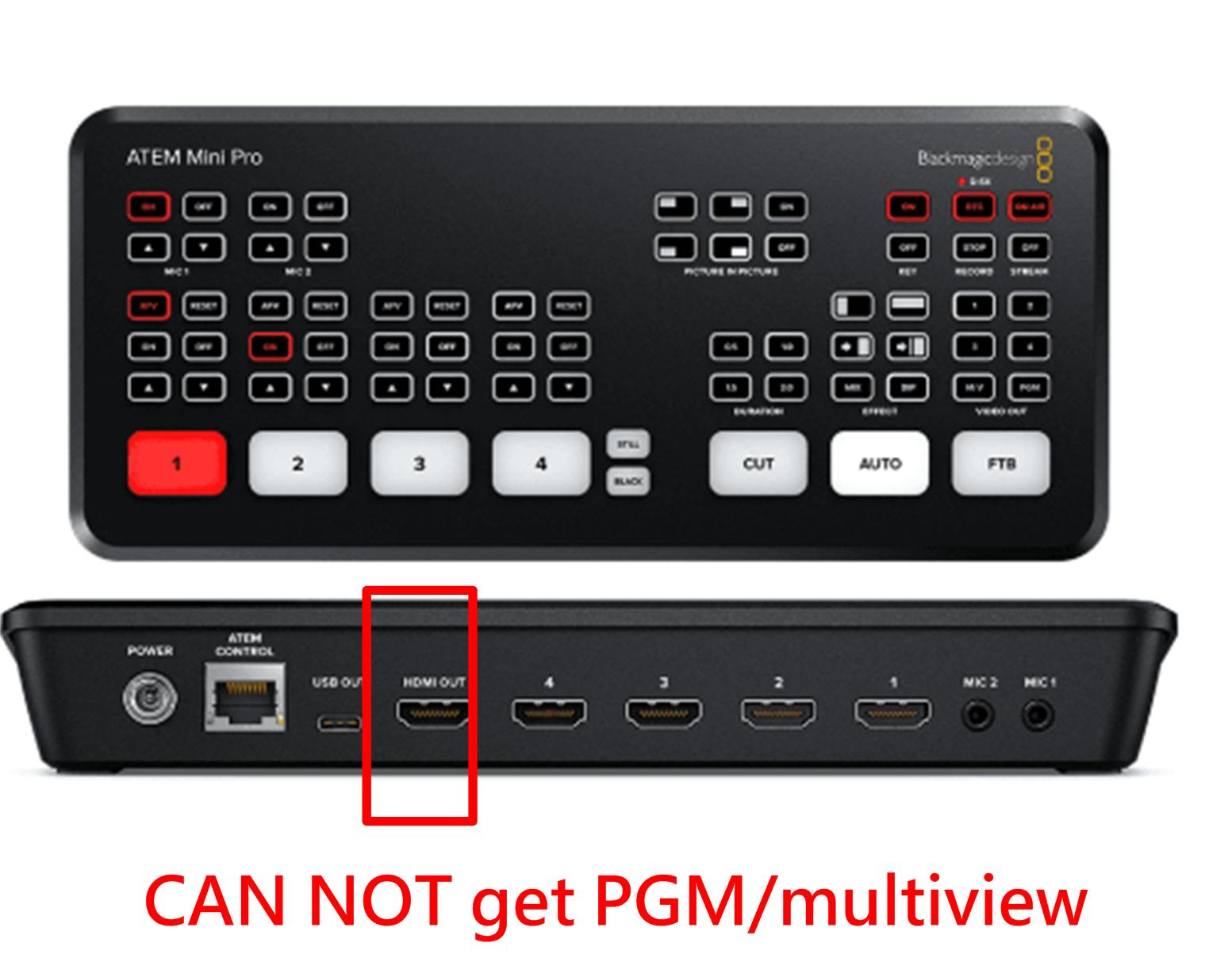

It CAN NOT connect hdmi output of atem mini series.
But my adapter hdmi output can connect to atem mini pro Ch2 ~ CH4.
USB WEBCAM input (INPUT B USB port)
WORK
|
USB-C output of atem mini / atem mini pro / atem mini iso
Logitech c92x ( atem mini pro will get error audio)
Logitech c270, c310,c525, c93x, BCC950 , Brio 4k, c615 C525
Logitech 4k pro magnetic webcam
logitech streamcam
IPEVO V4K
OBS BOT TINY
insta360 ONE R 4k camera
Microsoft webcam
MEVO START
MEVO PLUS
LUMINA WEBCAM
Avermeida BU110. Avermedia PW315 Avermedia PW515 , PW315
USB-C output of ATEM MINI / ATEM MINI PRO / ATEM MINI ISO
FEBON179 PLUS UVC hdmi CAPTURE CARD
J5create JVCU100
Aver DL10
DJI Pocket 3
|
No WORK
|
Avermedia BU113,
Avermedia PW513
EZCAP cam link , cam link
Elgato FACECAM |
