android application limitation
1. app : camerafi live
2. FEBON168 PLUS is compatible for cameafi live. but it have some limitation.
2.1 not all of android phone can let UVC device work. it have compatible issues
some android phone can not let uvc capture card work
eg: MTK main chip inside . most MTK chip inside android phone can not let uvc capture card work
2.2 performance issue
not all of android phone have good performance. some android phone work well.
eg: samsung s10 work work.
you need take the risk of performance
2.3 use and charge at the same time issue
micro usb android : it can not use and charge at the same time
USB-C andorid: some android phone can use and charge at the same time. some android can not
eg: samsung s10 can use and charge at the same time.
xiami middle-end phone can no tuse and charge at the same time.
USB2.0 FEBON168PUS UVC HDMI capture card is 720P uvc video output
1. Driver free (USB Video Class) UVC for any OS (windows XP、Vista、win7, win8, MAC OS)
2.Works on LINUX /Android if UVC driver has been developed in your embedded OS
(If you can let usb uvc webcam work on embedded os, FEBON168 UVC grabber will also work)
3. Compatible for windows Directshow.
4.Play & Plug with USB Video Class for USB 2.0
5.HDMI source inpt DO NOT support HDCP eg: SONY PS3 , Blueray
6. UVC / UAC UVC video : HD TV CAM or video device
UAC audio: HD TV CAM or audio device
7.Video latency: 0.2-0.25sec
8.hdmi resolution INPUT resolution / UVC OUTPUT resolution
All input resolution scale down /up into only one 1280x720 uvc resolution
Video conference application during Corona virus (COVID-19) for google meet / zoom /skype and etc
ATEM MINI video swticher with Android for facebook live
|FEBON168 capture card for zoom / skype application |
|GoPro as a camera for video conference use. |
Before you want to do livestreaming with android phone+ FEBON168 capture card,
please see the notice as below
1.1 if your android phone is android 10, please use below camerafi live apk download link
1.2 Not all of android phone can let uvc hdmi grabber card work
if the CPU is Mediatek SOC " MTXXXXX", grabber card can not work on this grabber card
android compatible list https://febon.blogspot.com/2017/02/compatible-list-of-uvc-device-working.html
You can test compatible issue by your self
step1: plug usb webcam (eg: logitech webcam ) with your android phone
step2: turn on app camerafi live
If your android can let external usb webcam be live streaming , my capture card will also use
2. The livestreaming from android is not better than from PC
4.at the same time, Not all of android phone can charege and live streaming
Most of android DO NOT live streaming and charge at the same time
HDMI to UVC !!!!
Driver free for MAC and windows
compatible for broadcasting /video conference software
(OBS Wirecast twitch ustream VMIX skype ....)
1. HDCP off:
You can connect APPLE TV box, SONY blueray dvd player...
2. LowLow power consumption . just 5V 208mA
it is the smallest power consumption in the world
3. Good for android phone application

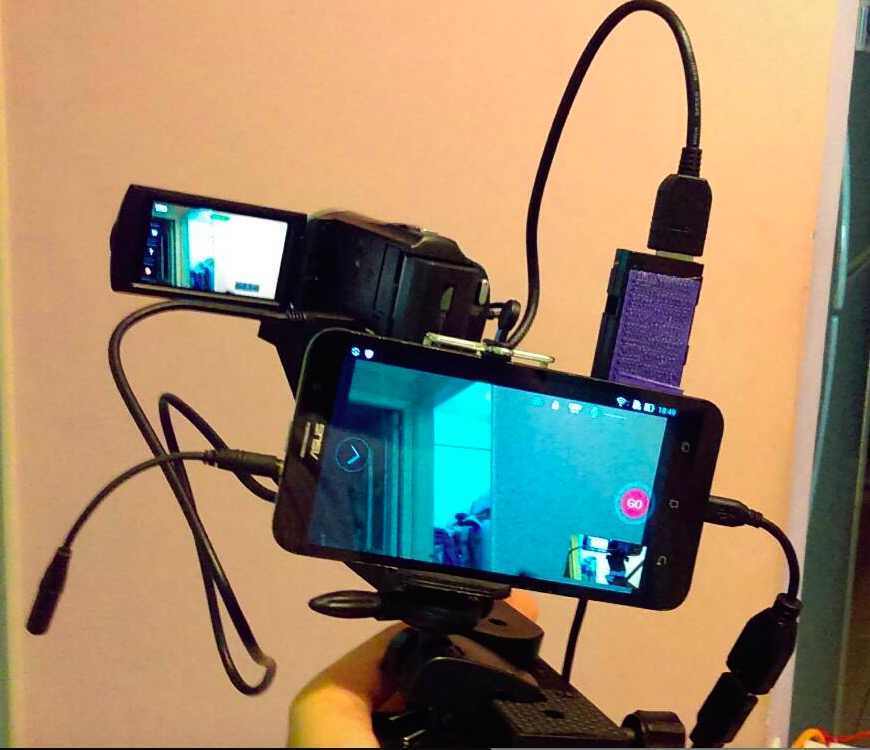

DV camcorder livestreaming with android phone to facebook live
(Not all of android phone can let it work!)
compatible list link
iPad as a monitor by wire HDMI connect
