Our company is located in Taiwan. (Not China or Hong Kong)
Under U.S. customs rules, shipments under USD 800 are duty-free
I’ll use one of my U.S. customers as an example.
Product spec
1. Turn USB2.0 mjpg UVC into http streaming
2. VIDEO only, NO AUDIO
3. UVC resolution is up to 1280x720 mjpg
4. WIFI or wire RJ45 connection.
5. frame rate is. 10~15FPS @ WIFI connection ; 20~25fps @ Wire RJ45 connection
6. video latency is about 240ms
Total latency = USB webcam latency + adapter latency
eg: Logitech C625
Total latency ( 350ms) = USB webcam latency (110ms) + adapter latency (240ms)
TURN TWO USB webcam into Wirless.
You need change iP address and match your home wifi router.
Extend distance & splitter for USB WEBCAM
1. Video only !!! NO audio!!!
2. WIFI VIDEO Performance:
it is wifi connect . the video frame rate will depend on your environment
usually,
1. WIFI connection: about 10fps ~ 15fps.
2. Wire ethernet connection: about 20~25fps
3. Video Latency:
adapter latency is about 240ms
Total latency = USB webcam latency + adapter latency
eg: Logitech C625
Total latency ( 350ms) = USB webcam latency (110ms) + adapter latency (240ms)
4. USB WEBCAM to WIFI adapter compatible :
Not all of USB webcam can be compatible for my adapter.
if your USB WEBCAM IS NOT listed on the table, you can test by yourself
condition 1 : usb webcam must be compatible for USB2.0 mode. it CAN NOT get USB3.0 webcam
condition 2: it just can get MJPG uvc streaming
condition 3: uvc resolution must be below 1280x720 (includes 1280x720)
TEST by yourself!!

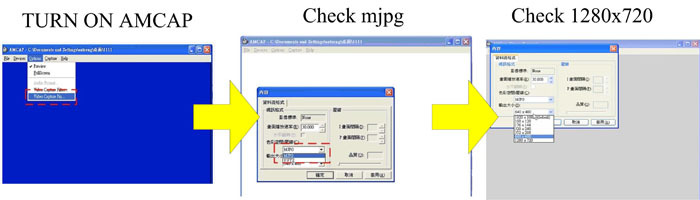

step1: download windows AP. "AMCAP"
step2: connect your usb webcam to a PC windows with USB2.0 port
( you can use USB2.0 HUB or add a usb2.0 extend cable)
step3: turn on APP "AMCAP". You need find out the mjpg stream & resolution must be below 1280x720
USB MJPG UVC WEBCAM
|
Logitech c270, c310,c525, c92x, c93x, c615 , brio 4k
logitech 4k pro magnetic webcam
streamcam, BCC950 , rally PTZ camera , ptz pro 2
IPEVO V4K , IPEVO DO-CAM
IPEVO V4K PRO
OBSBOT TINY OBSBOT TAIL
INSTA360 ONE R 4K camera
Microsoft webcam
NEVO START
MEVO PLUS ( My adapter support MEO PLUS after 10/12/2020 purchase)
AVer CAM340+ , AVer CAM520 PRO Avermedia PW315
Avermedia PW515
j5create jvcu100
LUMINA WEBCAM
CenterCam
|
CAN NOT WORK
1. USB YUV UVC WEBCAM
(It is not good. frame rate will be lower)
2. China cheap hdmi capture card
video is not stable. not good.
|
1. China cheap usb webcam
2. FEBON179 PLUS UVC hdmi CAPTURE CARD
3. elgato facecam
(it can not be compatitlbe for usb2.0 mode)
4. Avermedia PW513
|
How to connect:
| | |
iOS SAFARI (iOS14 later) or VLC
| http://10.10.1.1:8196 |
iOS APP: ucam plus
| just turn on app
|
iOS APP: MISUMI Wifi Camera
| just turn on app
|
PC VLC
|
http://10.10.1.1:8196 |
PC OBS STUDIO
|
Scenes->source->media source
1. DO NOT turn on "local file"
2. input
http://10.10.1.1:8196
|
| i |
|
