USB camera splitter ! Turn one UVC webcam into two output

USB camera splitter ! Turn one UVC webcam into two output

turn usb webcam into two webcam output. it can turn atem mini pro usb-c webcam into two output.
it also can let atem mini pro work on iOS.


{{ productService.variationPriceMemberTag(variationSelected) }}
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}
Quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description
USB CAMERA Splitter have two function
1. turn uvc webcam into two uvc output
2. turn uvc webcam into iOS & live streaming




shipping package:

 note: package 2 can work on iOS.







This is short runs . it is not mass production.
The material cost is high!


One UVC device input and two UVC output
Turn on time: 14 sec
Two way independence physical UVC output!!!
Output uvc resolution is up to 1920x1080p !!!


USB WEBCAM splitter adapter can connect a UVC webcam and turn it be two output.

it is called  "usb webcam splitter"

connected uvc usb webcam  to two computers at the same time!!!




1. Please put this adapter under environment temperature is below 30 °C ( < 86℉ )

   this adapter is ultra smallest.  so, it will be hot.

2.  USB WEBCAM compatitble list

   not all of usb webcam can work on this adapter.

   so far I test some usb webcam as below list


WORK Logitech c92x ( atem mini pro will get error audio)
Logitech c270, c310,c525, c93x, BCC950 , Brio 4k, c615 C525
Logitech 4k pro magnetic webcam
logitech streamcam
IPEVO V4K

OBS BOT TINY
insta360 ONE R 4k camera
Microsoft webcam
MEVO START
MEVO PLUS
USB-C output of ATEM MINI / ATEM MINI PRO / ATEM MINI ISO
No test
AVer CAM340+ , AVer CAM520 PRO



Product outlook :

1. PCBA module





2. With metal case:

   due to the hot issue, I add its volume.

   35mm x 65mm x95mm



How to use :


Product spec :

1. USB WEBCAM INPUT  format :

    1. 1 UVC1.1 ~UVC1.5 version

     1.2 your usb webcam need be compatitble for USB2.0 mode

     1.3 accept MJPG or YUV

     1.4 for safety, please follow my usb webcam compartible test table

2. uvc input resolution is up to 1920x1080p 30fps mjpg , 1920x1080p  yuv

3. two way uvc output resolution is up to 1920x1080p 30fps mjpg

   ( uvc resloution is 320x240, 640x420, 1280x720....1920x1080p 30fps mjpg)

3. USB webcam input resolution is independce of output uvc webcam resolution

  eg:   if usb webcam input resolution is 640x480,  it also can be output 1920x1080p

4. usb camera adapter power issue:

   4.1 without usb webcam input power, it is about 500 mA ~650mA @ 5V

   4.2 you need add a usb webcam power consumption

   4.3 Total power consumption is  as below

      power of adapter + power of usb webcam


APPLICATION:

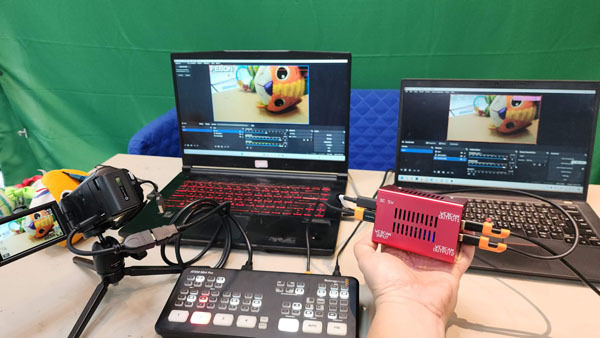

1. USB-C of atem mini (pro) dual output

  1.1 dual live streaming



   1.2 create PGM monitor by android phone

2. USB webcam

  2.1 Dual live streaming with dual OBS



2.2  android phone as a webcam monitor
