Wireless UHF DVB-T COFDM transmitter BOX with power amplifier

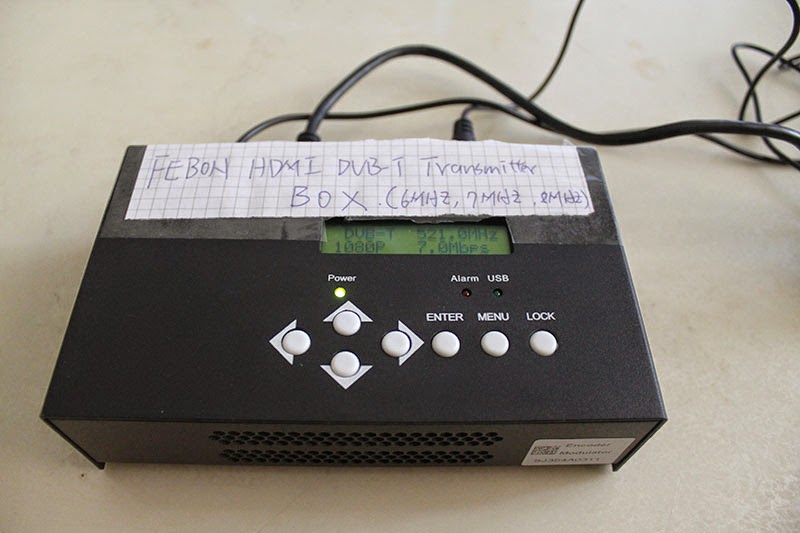

FEBON  Wireless UHF DVB-T COFDM HDMI INPUT  transmitter modulator (generator) BOX With Power amplifier

1. Power amplifier















After you connect the UHF antenna,  hdmi singal will become UHF DVB-T  singalit is wireless!!



HDMI INPUT DVB-T TX BOX technical spec
1. frequency: 142.5Mhz ~ 858Mhz, step=1KHZ
2. Bandwidth: 6MHZ, 7MHZ, 8MHZ
3.constellation: QPSK, 16QAM, 64QAM
 4.Code rate 1/2, 2/3 3/4, 5/6, 7/8
5.GUARD interval : 1/32, 1/16, 1/8, 1/4
6. transmission MODE: 2K, 4K, 8K
7. RF Power: -14 ~+6dbm

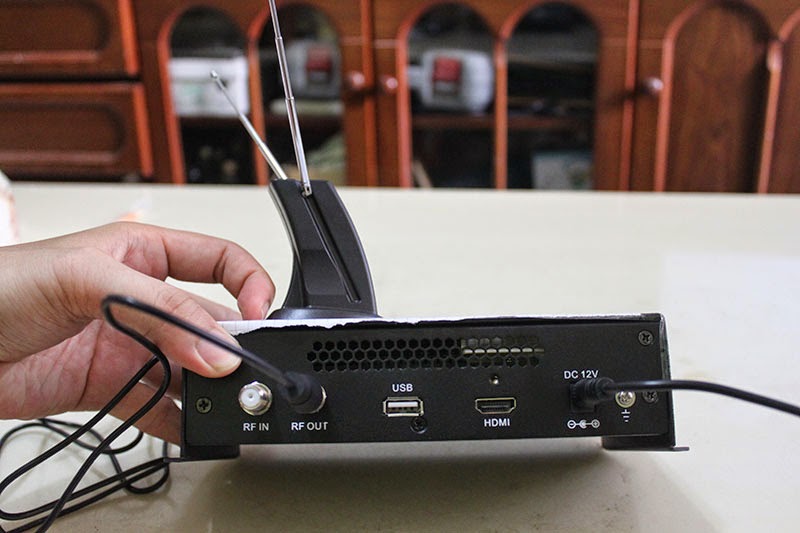

8. hdmi / CVB INPUT

SJ4000 ( GoPro like) camera hdmi output conenct the HDMI DVB-T TX modulator box.


iPad as the video source



Wireless UHF  signal can be receive by many Tuner at the same time.
The below demo will show that Wireless DVB-T UHF is received by TV tunner and USB DVB-T RX tunner on MAC.


With PA ( power amplifier)












it can let Wireless distance become 500m ( OPEN SPACE)
