new version USB3.0 FEBON100 UVC CVBS composite capture card

new version USB3.0 FEBON100 UVC CVBS composite capture card

Old USB2.0 FEBON100 UVC composite capture card is phase out. We start to sell new version USB3.0 FEBON100 composite capture card
it also have 3D comb filter and 3d de-interlacer. it also can connect to raspberry pi / linux / some android system..
its frame rate is up to 60fps and low video latency

US$99.00
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}
Quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description

For shipping to United states

Effective August 29, pursuant to Effective August 29, pursuant to U.S. Customs and Border Protection (CBP) regulations,  regulations,

our company will declare tariff code (HS CODE)  8473.3091 for goods imported into the United States, which is expected to qualify for zero duty.

Our company's invoice will state a value of US$35, which will serve as the basis for customs duty assessment.

Should duties be imposed, the amount will be calculated as US$35 × 20% = US$7.

Final determination shall remain subject to the assessment and approval of U.S. Customs

--------------------------------------------------------------------------------------------------------------------------------------------------



-
If you target for analog wireless airplane drone, please buy this one as below link
Old version USB2.0 FEBON264 CVBS capture card

https://livestream.qdm.tw/FEBON264-UVC-CVBS

-

The wireless CVBS  is weak and not stable.

For airplane drone use, the analog wireless is weak and NOT stable.
please buy this one as below link~~~
Old version USB2.0 FEBON264 CVBS capture card












NTSC mode: 720x480, 640x480, 320x240 mjpg/YUV 60fps

PAL mode: 720x576, 640x480, 320x240, mjpg/ YUV 60fps

auto detect mode: 1920x1080, 1600x1200,1360x768,1280x1024,1280x960, 1280x720,720x480,720x576,640x480..

( 1080P resolution is just scaler up. the real resolution is 720x480 (NTSC source) & 720X576(PAL source)


Product spec:

1. USB BULK mode :at the same time, you can plug many USB3.0 FEBON100 capture card

2. USB3.0mode:  YUV／MJPG up to 720x480 (NTSC) 60fps /720x576 (PAL) 60fps

3. video latency is less than 130ms

4. good compatible: raspberry pi/ linux / some android  /windows 7 8 10 11../ mac osx

5. For NTSC and PAL format,

NTSC version: YUV/ MJPG 720x480 , 640x480, 320x240 60fps

PAL version: YUV/ MJPG 720x576 , 640x480, 320x240 60fps

6. embedded 3D comb filter and 3D de-interlacer




CVBS (Composite)  to UVC !!!!
Connect to android


Connect to Raspberry pi


Connect to Raspberry iPad






 compatible for broadcasting /video conference software

(OBS Wirecast twitch ustream VMIX skype ....)




 FEBON100 UVC CVBS capture card work on PC at the same time
( USB Bulk mode)





 Good Video Quality

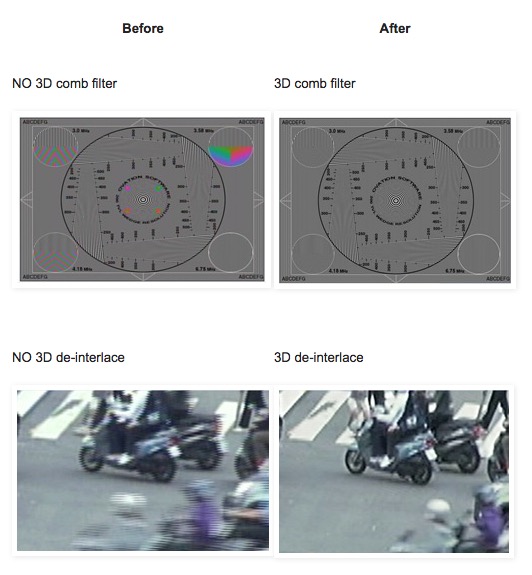

3D comb filter , 3D De-interlace, 3D Noise Reduction
