USB UVC webcam to lightning adapter CAN work on iOS10 ~ iOS17 and iOS18 beta
USE notice!!!
1. it CAN NOT use and charge power at the same time
2. VIDEO ONLy, NO audio

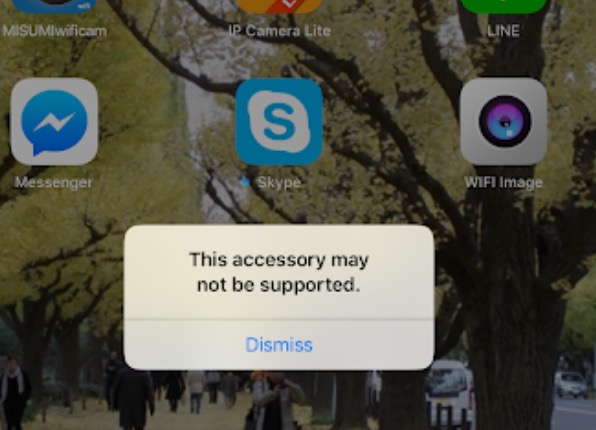

3. It will show error message. But you still can use
4. It just can work on our app. it CAN NOT "directly" work on video conference app
eg: can not work on facebook /skype /facetime / zoom and etc
-
-
you can use " screen share" . iOS ZOOM /SKYPE / Google meet have screen share function.
by use this method, external webcam can share video for zoom skype google meet and etc.
you need check your app if it have "screen share " function.
5. We DO NOT release SDK (software design kit) or API now!
if you need develop your own app, you need buy this one that can support api sdk
6. compatible test
This is a portable product.
its compatible is not the same as PC
We DO NOT guarantee all of USB UVC webcam can work
WORK for 100% sureWORK for 100% sure
(usb webcam MUST be at least uvc 1280x720 30fps mjpg output) |
FEBON888 UVC HDMI capture card
FEBON168 HDMI cature card
Avermedia BU110
Shadowcast
Logitech c270, c310,c525, c92x, c93x, c615 , brio 4k
logitech 4k pro magnetic webcam
streamcam, BCC950 , rally PTZ camera , ptz pro 2
IPEVO V4K , IPEVO DO-CAM
IPEVO V4K PRO
OBSBOT TINY OBSBOT TAIL
INSTA360 ONE R 4K camera
Microsoft webcam
NEVO START
MEVO PLUS ( My adapter support MEO PLUS after 10/12/2020 purchase)
AVer CAM340+ , AVer CAM520 PRO
j5create jvcu100 |
| No WORK |
1. FEBON179 PLUS UVC hdmi CAPTURE CARD
2. USB-C webcam OUTPUT OF ATEM MINI
(CAN NOT turn USB-C of atem mini pro / iso into HDMI, PGM hdmi)
3. China low-end USB WEBCAM ( DO NOT have 1280x720 mjpg)
4. elgato cam link
|
7. this is just entry level product. it CAN not modify the uvc color parameter.
it just can select uvc resolution . video format (mjpg /yuv)....
it CAN NOT select modify the uvc color , brightness, sharpness.... and etc.
USB UVC webcam to lightning adapter
Package: uvc to lightning box (metal case):
Shipping package:
1. uvc webcam to lightning converter
2. USB Y Cable
| video demo
|
package:
1. webcam to lightning converter box
2. USB Type A to Type A with charge line (USB Y cable)
Before shipping, i will connect it and inform you which one is power line and which one is for usb cam
product specification
1. iOS 10 ~ iOS17 and iOS18 beta & all iPadOS.
2. support lighting or USB-C interface
3. video only , no audio
4. just select uvc resolution / mjpg yuv paramter.
APP: "wifi image" or iUVC pro
although its name includes "wifi", it real use wire lighting connect
1. live preview
2. still picture
3. video record
FEBON UVC camera to lightning adapter just work with APP " wifi image"
it CAN NOT work on "facetime, skype and etc"
How to do ?
1. FEBON uvc webcam to wire lightning converter box
2. DC 5V adapter
3. iPhone charge cable
4. uvc usb webcam
step1: plug the USB Y cable with the board
step2: connect usb webcam and lighting as below
step3: you need accept (trust)
step4:

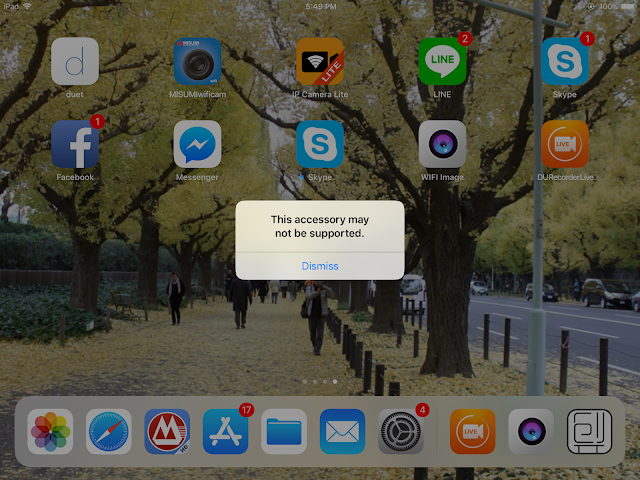

some machine can not charge and use at the same time
and will show the error message
But, it still can use!!
you can let usb uvc camera connect with iPhone iPad by wire lightning connector
eg:
USB logitech c310 c910 webcam become wire lightning camera
USB microscope become wire lightning microscope
USB IPEVO document camera become wire lightning
USB snake camera (endoscope ) become wire lightning
communicate technology: peertalk
1. We DO NOT release SDK ( software design kit)
2. You can reference the below link about Peertalk desing
3. iOS (iPhone iPad) kit is as device.
UVC webcam to lighting adapter is as host
this idea is that iphone connect with PC and use iTunes to transmit into iOS.
uvc webcam to lightning adapter is like a "small computer".
This small computer is just a Linux base
4. Who also use "Peertalk"
iOS app: duet display
this app can let iPad as a second monitor for PC windows MAC
WINDOWS / MAC OS be mirror to iPad

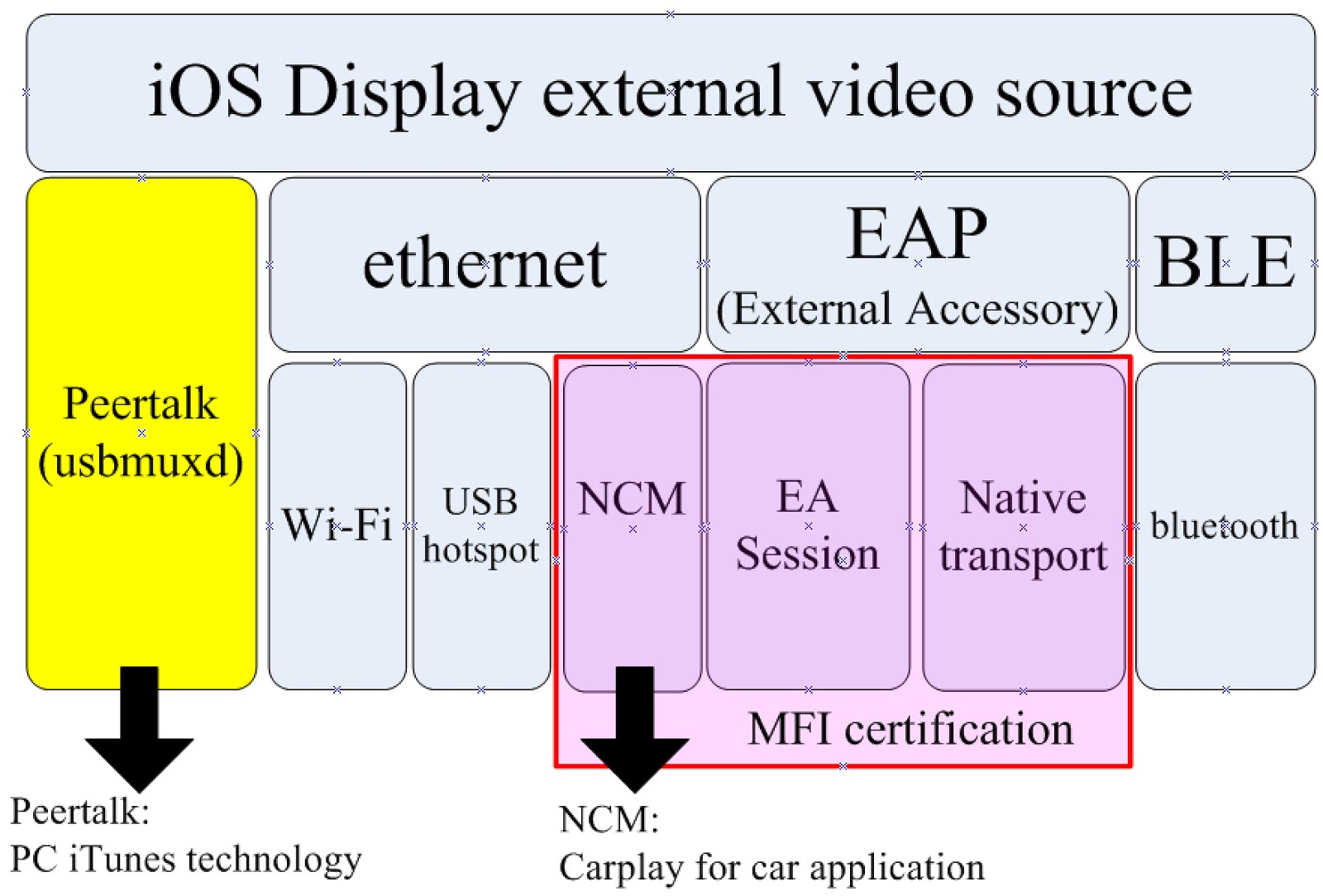

5. NO MFI issue
MFI : NCM, EA session, Native transport
No MFI : wifi , usb hotspot, peertalk
APPLICATION
1. uvc usb webcam work on iPad Pro (Type C version)

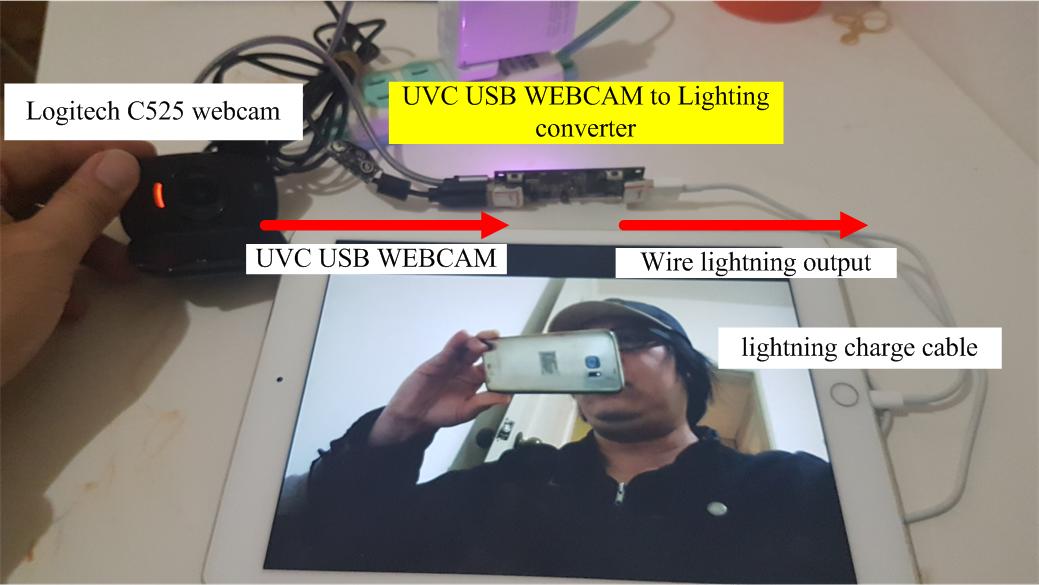

2. logitech c525 usb camera display on iPad
3.USB microscope display on iPad
4.USB IPEVO document camera display on iPad
5.USB snake camera (endoscope ) display on iPad
-
-
-
SDI video display on iPad
SDI to lightning converter= FEBON189 UVC HDMI grabber card + uvc webcam to lightning
CVBS display on iPad
CVBS to lightning converter= FEBON264 UVC CVBS grabber card + uvc webcam to lightning
