item1: (for free app medialink live / medialink switcher use)
app: medialink live
support iphone 6 above
Before you plug FEBON iCapture hdmi grabber card, medialink live app CAN NOT use facebook live
After you plug FEBON iCapture hdmi grabber card, medialink live app CAN use facebook live
① AUTO login facebook live ( personal / fans page live / group live )
② AUTO login twitch live. ( Twitch IRL livestreaming)
③ custom RTMP live streaming
④auto login yotube live
for first use, please use PC browser to turn on old version youtube live page
after that, you can use app medialink live to do youtube live
you just turn on that for the first time
when you want to do youtube live next time, you do not necessary to turn on PC old version youtube live
item2: For iOS systm, FEBON iCapture just can work on our app "medialink live " or. "medialink switcher" two app only
① It just can work on our iOS app "medialink live. it "CAN NOT directly" work on anther iOS app eg: instagram /skype /facetime /zoom app.
We DO NOT release SDK (software design kit) or API now!
iOS hdmi capture can share the video & audio for iOS zoom /skype /google meet by "screen share"
② DO NOT release API /SDK
if you need develop your own app & get API SDK, please buy below link
UVC webcam to iOS adapter
③ FEBON iCapture hdmi caputure card can work on windows / mac osx
After 03/01/2021 purchase, FEBON iCapture grabber card can work on MAC OSX and widnows
Windows 10 : video & audio together.
MAC OSX : video & audio together.
android : android11 later + apk camerafi live
eg: samsung s21+ android11 +camerafi live
item3: see or write livestreaming message
① for app "medialink live" use : you can not see the chat message and can not reply message on the same iphone
if you want to see chat message or replay message, you need use another phone (android or iPhone)
② for app "medialink switcher" use:
see message: facebook live ( profile , page, group) and youtube live
write message: facebook live ( page only). and youtube live
item4: audio source
How to be audio source as live streaming ?
if camera do not live audio , you need select iPhone MIC as live streaming audio source
(eg: CANON 500d)
item5: not all of camera can be as live streaming
you need test by yourself
step1: plug your camera hdmi output with TV
step2: open TV
if TV have live video, your camera can be as live streaming video source
it TV have audio echo, your camera can be as live streaming audio source
https://youtu.be/IyR9apLj6Is
item6: system requirment :
OS requirement : iOS12 iOS13 iOS14 iOS15 iOS16
iPhone requirement: iPhone 6S up is better
iPad requirement : iPad AIR

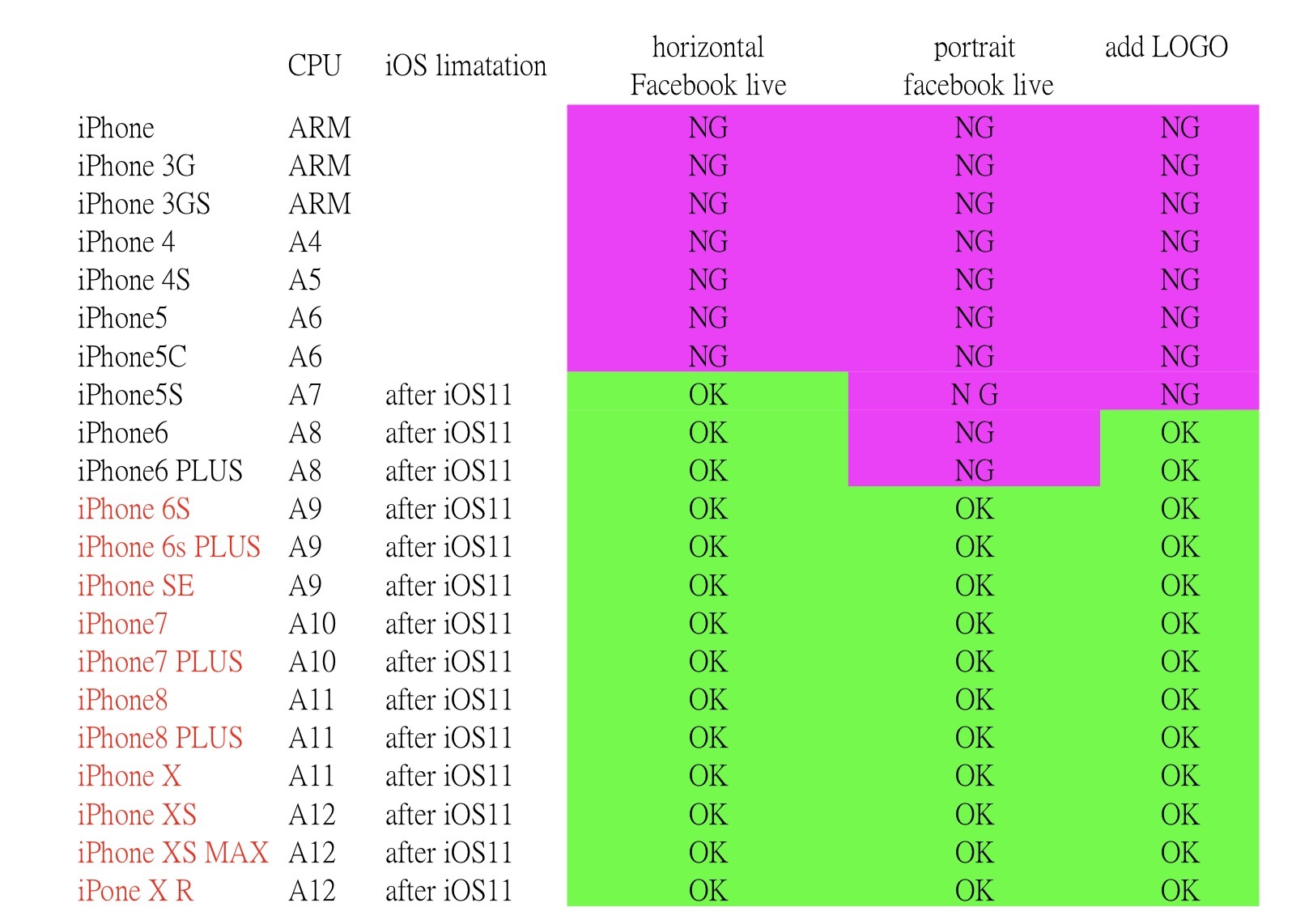

Item7: some iPhone /iPad can support 720X1280 Portrait mode
i6S/i6S Plus/se/i7/i7 Plus/i8/i8 Plus/iX/iXS/iXR/iXS Max/all iPad Pro/iPad 5 up/iPad Air3/iPad mini5[A9 up]
==>support Portrait mode
Product SPEC:
1. HDCP off
2. The power consumption is about 550mA @ 5V
3. video latency 0.1 sec @720p hdmi source and 720p video output.
4. output resolution
facebook live: up to 720p 30fps , 4000kbps
youtube live : up to 1080p 30fps , 10000kbps
twitch live : up to 1080p 30fp , 10000kbps
local record: up to1080p 30fps, 15000kbps
Product Package:
2. USB3.0 TYPE A to TYPE A cable

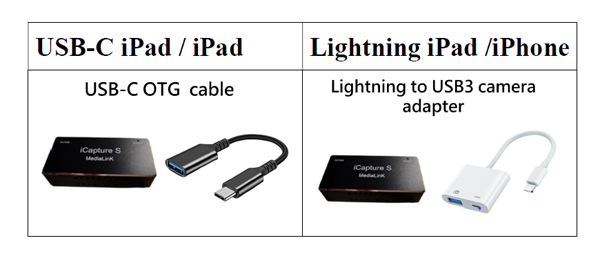

3. Lightning to USB3.0 camera adapter
4. xiaomi 18w DC power adapter (5V 3.6A)
5. micro usb cable
6. lightning extend cable
-
dd
d
note:
Phone iPad can live streaming and charge at the same time
You need prepare by yourself
1. iPhone Lightning chrage cable
2. Power bank (5V 2.1A x 2 port )
if you want to carry outside, you need the power bank
FEBON suggest that you can buy PHILIPS " "DLP10003"
iOS APP: medialink live
1.best video frame rate of live streaming
2. bit rate control Optional
3. AUTO login facebook live ( personal / fans page /group live)
AUTO login twitch live. ( Twitch IRL livestreaming)
custom RTEMP live streaming
AUTO login youtube live
For iOS app "medialink live"
Before you plug FEBON iCapture hdmi grabber card, you CAN NOT use facebook live
After you plug FEBON iCapture hdmi grabber card, you CAN use facebook live
4. audio select : hdmi audio source / iOS internal Mic
5. overlay logo function (optional)
After you pay US$10, you can use this function forever
[with A7/A8 CPU devices as following, iPhone 6/iPhone 6 Plus/iPad Air are not supported]
How to use FEBON iCpature HDMI grabber card?
日本語:
-
-
-
-
real twitch IRL (In Real Life) live streaming demo
facebook Live
SONY AS300 sport camera
1280x720p live
| facebook live
SONY AS300 sport camera
1280x720p live
|
| |
TWITCH LIVE ( BACK UP in Youtube)
SONY AS300 Sport camera
1920x1080p 30fps
| Youtube LIVE
SONY AS300 Sport camera
1920x1080p 30fps
|
| |
| iCapture grabber card live streaming with Youtube live | iCapture grabber card live streamingwith facebook live |
| |
iOS capture card can work with iPhone iPad directly
1.camcorder DSLR be live streaming with iPhone to Youtube Live / facebook live (personal)
2. let iPad as a TV monitor .
APPLICATION1: live streaming
SONY Camcorder be live streaming with iPhone
--
SONY AS300 be live streaming with iPad
GoPro hero 5 be live streaming with iPhone
-
-
-APPLICATION1: iPad as monitor for PC / CAMERA / Raspberry pi / multimedia box
iPad as a second monitor display for pc / mac
iPad as Monitor for multimedia box
iPad as monitor for CANON DSLR
iPad as monitor for Raspberry pi
-
-
-d
-
-
-
-
-
-
Video latency
The video latency of iOS hdmi cpature card is about 0.08-0.1 sec
